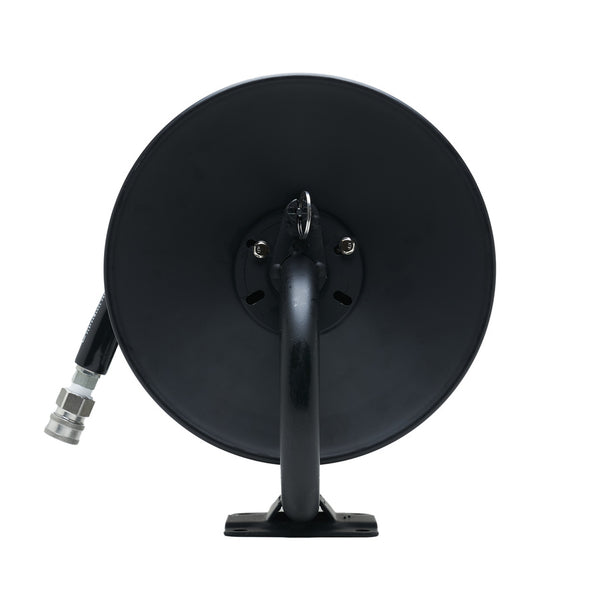

This all-inclusive hose reel kit has everything you need including installed fittings and assembly! The Premium 50' and 100' Hose Reel Kit includes a hose reel, a KobraJet grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel quick connects, and a high-grade brass swivel that is recognized to outperform other competing models.
Specifications:
- Supports 100' of 3/8" (ID) pressure washing hose
- 50' Mounted Weight: 19lbs.
- 100' Mounted Weight: 32lbs.
- 4,000 PSI Max
- 140° Max Temp
Included:
- Hose Reel
- KobraJet Grey 3/8” 4,000 PSI Non-Marking Hose
- 5’ Whip Line 3/8" stainless steel couplers installed
- 3/8” stainless steel plug installed on inlet of hose reel
- 3/8” stainless steel coupler installed on outlet of hose
- Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
- Teflon Tape
- Installation and mounting instructions
|
Measurement |
50' |
100' |
|
Height |
12.5" |
12.5" |
|
Total Width |
11" |
15" |
|
Depth |
10.5" |
10.5 |
|
Wall Width |
7.5" |
12" |
|
Core Width |
4.375" |
8.75" |
|
Core Diameter |
4.25" |
4.25" |
|
Inlet |
3/8" Male NPT |
3/8" Male NPT |
|
Base to Center of Core |
7.5" |
7.5" |
|
Mounting Bracket |
4 holes-square - 3.375" to center |
4 holes-square - 3.375" to center |
|
Hole Diameter |
0.375" Circle |
0.375" Circle |
|
Pin Lock |
Yes |
Yes |
|
Mounting Hardware |
None |
None |
